RF Configuration

This section describes the radio frequency settings and configuration parameters used by the Hekatron Genius Plus X communication system.

Analysis Method

The CC1101 RF transceiver is connected to the microcontroller via SPI. Consequently, configuration and control are primarily based on this connection.

To determine the specific CC1101 parameters, it was necessary to analyze the SPI communication using a digital oscilloscope. Built-in analysis functions (for serial interfaces like SPI or UART) facilitate the analysis work. However, the most comfortable evaluation is with a logic analyzer, which is specialized for this type of analysis.

The CC1101 transceiver datasheet describes commands for writing and reading configuration and status registers. This allows identification of read and write actions within the recorded communication. Furthermore, using the information in the CC1101 datasheet, one can determine which registers are written or read and what data is written or read.

Once the individual configuration registers and the data being written are identified, the datasheet information can be used to determine their meaning and effect.

Startup Sequence

When the radio module is plugged into the smoke detector, it receives power. Unlike the smoke detectors, which have permanent power supply (batteries cannot be removed), the radio modules have no internal power supply. Consequently, all necessary configurations occur after plugging in the radio module.

Immediately after the CC1101 chip reset, a series of individual registers are written and read. Immediately thereafter, the decisive configuration is performed using burst write.

CC1101 Burst Write Initialization

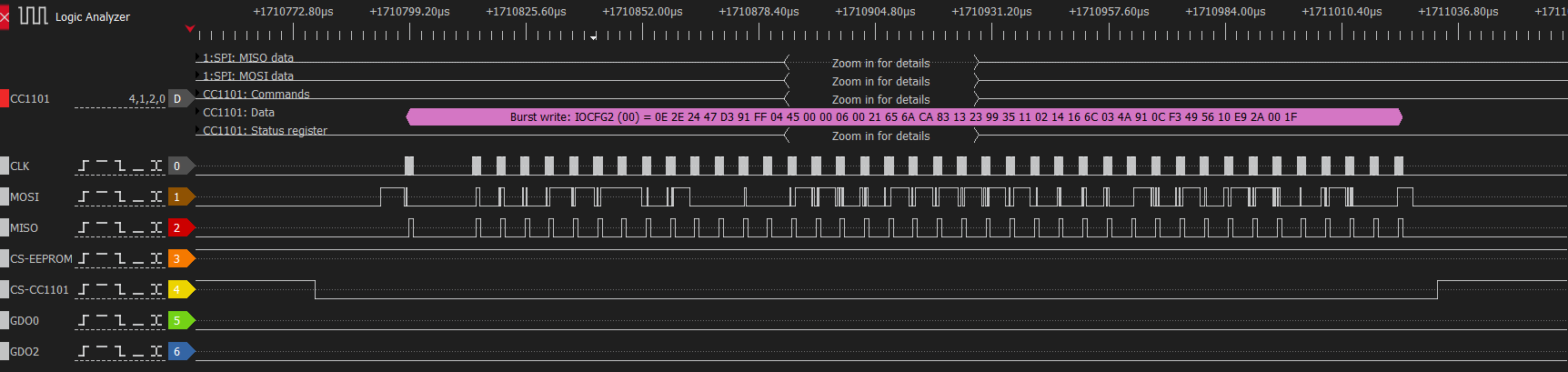

Figure 1: Logic analyzer capture showing CC1101 burst write initialization sequence

Initial Burst Write

The following table shows the complete register initialization sequence captured from the SPI communication:

Register Address Value Purpose
IOCFG2 0x00 0x0E GDO2 Pin Configuration: 0x0E = RX FIFO threshold signal. Pin asserts when RX FIFO is filled at or above threshold (32 bytes). Pin goes high when data available for reading.
IOCFG1 0x01 0x2E GDO1 Pin Configuration: 0x2E = High impedance (3-state). Pin is disabled and presents high impedance to external circuits. Not used in this application.
IOCFG0 0x02 0x24 GDO0 Pin Configuration: 0x24 = WOR_EVNT0 signal. Pin pulses high when Wake-on-Radio EVENT0 timeout occurs, enabling low-power periodic wake-up functionality.
FIFOTHR 0x03 0x47 FIFO Thresholds: 0x47 = Bits[7]=0 (ADC retention disabled), Bits[5:4]=01 (Close in RX timeout), Bits[3:0]=0111 = TX threshold: 33 bytes free, RX threshold: 32 bytes filled.
SYNC1 0x04 0xD3 Sync Word High Byte: 0xD3 = Upper 8 bits of 16-bit sync word (0xD391). Used for packet detection and synchronization.
SYNC0 0x05 0x91 Sync Word Low Byte: 0x91 = Lower 8 bits of 16-bit sync word (0xD391). Combined with SYNC1 forms unique packet identifier.
PKTLEN 0x06 0xFF Fixed Packet Length: 0xFF = 255 bytes maximum packet length. Only used in fixed packet length mode (not active here due to variable length mode).
PKTCTRL1 0x07 0x04 Packet Control 1: 0x04 = Bits[7:5]=000 (PQT=0), Bit[3]=0 (no address check), Bit[2]=1 (append status bytes), Bits[1:0]=00 (no address check). Status bytes (RSSI, LQI, CRC) appended to received packets.
PKTCTRL0 0x08 0x45 Packet Control 0: 0x45 = Bit[6]=1 (data whitening ON), Bit[4]=0 (normal packet format), Bit[2]=1 (CRC calculation/check ON), Bits[1:0]=01 (variable packet length mode). First byte indicates packet length.
ADDR 0x09 0x00 Device Address: 0x00 = Node address 0. Not used since address checking is disabled in PKTCTRL1.
CHANNR 0x0A 0x00 Channel Number: 0x00 = Channel 0. Base frequency used without channel spacing offset.
FSCTRL1 0x0B 0x06 Frequency Synthesizer Control: 0x06 = IF frequency = (26MHz/1024) × 6 = 152.34 kHz. Sets intermediate frequency for receiver.
FSCTRL0 0x0C 0x00 Frequency Offset: 0x00 = No frequency offset. Base frequency used without additional offset.
FREQ2 0x0D 0x21 Frequency Control High: 0x21 = FREQ[23:16] bits. Combined frequency word = 0x21656A = 2188650₁₀ → f = (26MHz/65536) × 2188650 = 868.035 MHz
FREQ1 0x0E 0x65 Frequency Control Middle: 0x65 = FREQ[15:8] bits. Part of 24-bit frequency control word for 868.035 MHz carrier frequency.
FREQ0 0x0F 0x6A Frequency Control Low: 0x6A = FREQ[7:0] bits. Completes 24-bit frequency word: 0x21656A → 868.035 MHz carrier frequency.
MDMCFG4 0x10 0xCA Modem Config 4: 0xCA = Bits[7:6]=11 (CHANBW_E=3), Bits[5:4]=00 (CHANBW_M=0) → BW = 26MHz/(8×(4+0)×2³) = 101.56 kHz, Bits[3:0]=1010 (DRATE_E=10)
MDMCFG3 0x11 0x83 Modem Config 3: 0x83 = DRATE_M = 131₁₀. Data rate = ((256+131)×2¹⁰×26MHz)/(2²⁸) = 38.383 kBaud. Combined with MDMCFG4 for complete data rate calculation.
MDMCFG2 0x12 0x13 Modem Config 2: 0x13 = Bit[7]=0 (DEM_DCFILT_OFF), Bits[6:4]=001 (MOD_FORMAT=GFSK), Bit[3]=0 (Manchester disabled), Bits[2:0]=011 (SYNC_MODE=30/32 sync word bits detected).
MDMCFG1 0x13 0x23 Modem Config 1: 0x23 = Bit[7]=0 (FEC disabled), Bits[6:4]=010 (NUM_PREAMBLE=4 bytes), Bits[1:0]=11 (CHANSPC_E=3). Channel spacing exponent for frequency hopping.
MDMCFG0 0x14 0x99 Modem Config 0: 0x99 = CHANSPC_M = 153₁₀. Channel spacing = ((256+153)×2³×26MHz)/(2¹⁸) = 199.95 kHz. Used for multi-channel operation.
DEVIATN 0x15 0x35 Frequency Deviation: 0x35 = Bits[6:4]=011 (DEVIATION_E=3), Bits[2:0]=101 (DEVIATION_M=5). Deviation = (8+5)×2³×26MHz/2¹⁷ = 47.61 kHz for GFSK modulation.
MCSM2 0x16 0x11 Main Radio Control 2: 0x11 = Bits[4:3]=10 (RX_TIME_RSSI), Bits[2:0]=001 (RX_TIME=1). Timeout for RX termination based on RSSI, carrier sense timeout = 1 × 0.1803 ms.
MCSM1 0x17 0x02 Main Radio Control 1: 0x02 = Bits[5:4]=00 (CCA_MODE=always), Bits[3:2]=00 (RXOFF_MODE=IDLE), Bits[1:0]=10 (TXOFF_MODE=RX). After TX, automatically go to RX mode.
MCSM0 0x18 0x14 Main Radio Control 0: 0x14 = Bits[5:4]=01 (FS_AUTOCAL=from IDLE to RX/TX), Bits[3:2]=01 (PO_TIMEOUT=149-155 μs), Bits[1:0]=00 (PIN_CTRL disabled). Auto-calibration on state transitions.
FOCCFG 0x19 0x16 Frequency Offset Compensation: 0x16 = Bits[5:3]=010 (FOC_PRE_K=3K), Bits[2]=1 (FOC_POST_K=K/2), Bits[1:0]=10 (FOC_LIMIT=±BW/8). Compensates ±12.7 kHz frequency offset with 3K pre-sync gain, K/2 post-sync gain.
BSCFG 0x1A 0x6C Bit Synchronization Config: 0x6C = Bits[7:6]=01 (BS_PRE_KI=2KI), Bits[5:4]=10 (BS_PRE_KP=3KP), Bits[3:2]=11 (BS_POST_KI=KI), Bits[1:0]=00 (BS_POST_KP=KP). Clock recovery with 2KI/3KP pre-sync, KI/KP post-sync gains.
AGCCTRL2 0x1B 0x03 AGC Control 2: 0x03 = Bits[7:6]=00 (MAX_DVGA_GAIN=all gain settings), Bits[5:3]=000 (MAX_LNA_GAIN=maximum), Bits[2:0]=011 (MAGN_TARGET=33 dB). AGC targets 33 dB channel amplitude with full gain range.
AGCCTRL1 0x1C 0x4A AGC Control 1: 0x4A = Bit[6]=1 (AGC_LNA_PRIORITY=1), Bits[5:4]=00 (CARRIER_SENSE_REL_THR=disabled), Bits[3:0]=1010 (CARRIER_SENSE_ABS_THR=-6 dB). LNA gain adjusted first, carrier sense at -6 dBm absolute threshold.
AGCCTRL0 0x1D 0x91 AGC Control 0: 0x91 = Bits[7:6]=10 (HYST_LEVEL=medium), Bits[5:4]=01 (WAIT_TIME=16 samples), Bits[3:2]=00 (AGC_FREEZE=never), Bits[1:0]=01 (FILTER_LENGTH=16 samples). Medium hysteresis, 16-sample averaging.
WOREVT1 0x1E 0x0C WOR Event0 Timeout High: 0x0C = EVENT0[15:8] = 12₁₀. Combined with WOREVT0: EVENT0 = 0x0CF3 = 3315₁₀. WOR period = 3315 × 2⁵ × 0.9765 ms = 103.4 seconds between wake-ups.
WOREVT0 0x1F 0xF3 WOR Event0 Timeout Low: 0xF3 = EVENT0[7:0] = 243₁₀. Completes 16-bit timeout: 0x0CF3 = 3315₁₀ × 32 × 0.9765 ms = 103.4 second sleep periods for power saving.
WORCTRL 0x20 0x49 WOR Control: 0x49 = Bit[7]=0 (RC_PD=normal), Bits[6:4]=100 (EVENT1=16), Bit[3]=1 (RC_CAL=enabled), Bits[2:0]=001 (WOR_RES=2⁵ periods). RC oscillator calibration enabled, 32-period resolution, EVENT1 timeout.
FREND1 0x21 0x56 Frontend RX Config: 0x56 = Bits[7:6]=01 (LNA_CURRENT), Bits[5:4]=01 (LNA2MIX_CURRENT), Bits[3:2]=01 (LODIV_BUF_CURRENT_RX), Bits[1:0]=10 (MIX_CURRENT). Optimized RX frontend current settings for sensitivity/power balance.
FREND0 0x22 0x10 Frontend TX Config: 0x10 = Bits[7:4]=0001 (LODIV_BUF_CURRENT_TX), Bits[2:0]=000 (PA_POWER=0). PA power table index 0, optimized TX LO buffer current for power efficiency.
FSCAL3 0x23 0xE9 Frequency Synthesizer Cal 3: 0xE9 = Bits[7:6]=11 (FSCAL3[7:6]), Bits[5:4]=10 (CHP_CURR_CAL_EN), Bits[3:0]=1001 (FSCAL3[3:0]). VCO calibration values for 868 MHz operation, charge pump current enabled.
FSCAL2 0x24 0x2A Frequency Synthesizer Cal 2: 0x2A = Bit[5]=1 (VCO_CORE_H_EN=high performance VCO), Bits[4:0]=01010 (FSCAL2[4:0]=10). High VCO current for stable 868 MHz synthesis with calibration value 10.
FSCAL1 0x25 0x00 Frequency Synthesizer Cal 1: 0x00 = Bits[5:0]=000000 (FSCAL1[5:0]=0). Frequency synthesizer calibration result value 0, indicates optimal VCO calibration for target frequency.
FSCAL0 0x26 0x1F Frequency Synthesizer Cal 0: 0x1F = Bits[6:0]=0011111 (FSCAL0[6:0]=31). Frequency synthesizer calibration result value 31, fine-tunes VCO for precise 868.035 MHz operation.

Dynamic Configuration Changes

While the burst write establishes the base configuration, some registers may be modified during runtime based on operational requirements. Parameters like power levels (PATABLE), WOR settings (WORCTRL), and calibration values (FSCAL registers) can be dynamically adjusted by the firmware to optimize performance or adapt to changing conditions.

Configuration

Key RF Parameters

Based on the register analysis, the following key parameters were determined:

Parameter Value Calculation/Source
Carrier Frequency 868.035400390625 MHz FREQ = 0x21656A = 2188650₁₀
f = (26MHz/65536) × 2188650
Modulation GFSK MDMCFG2[6:4] = 001
Sync Word 0xD391 SYNC1=0xD3, SYNC0=0x91
Data Rate 38.383483886719 kBaud DRATE_E=10, DRATE_M=131
Rate = ((256+131)×2¹⁰×26MHz)/(2²⁸)
Frequency Deviation ±47.607421875 kHz DEVIATION_E=3, DEVIATION_M=5
Dev = (8+5)×2³×26MHz/2¹⁷
Channel Bandwidth 101.5625 kHz CHANBW_E=3, CHANBW_M=0
BW = 26MHz/(8×(4+0)×2³)
Sync Mode 30/32 bits MDMCFG2[2:0] = 011
Preamble Length 4 bytes MDMCFG1[6:4] = 010
Packet Format Variable length PKTCTRL0[1:0] = 01
CRC Enable ON PKTCTRL0[2] = 1
Data Whitening ON PKTCTRL0[6] = 1
Address Check Disabled PKTCTRL1[1:0] = 00
Status Append Enabled PKTCTRL1[2] = 1
Channel Spacing 199.951171875 kHz CHANSPC_E=3, CHANSPC_M=153
Spacing = ((256+153)×2³×26MHz)/(2¹⁸)
Manchester Encoding Disabled MDMCFG2[3] = 0

Power

The power amplifier (PA) configuration is set through the PATABLE and FREND0 registers:

Register Address Value Purpose
PATABLE[0] 0x3E 0x03 PA Power Level 0: 0x03 = Minimum output power (~-30 dBm). Used for very short range communication or testing modes.
PATABLE[1] 0x3E 0x0F PA Power Level 1: 0x0F = Low output power (~-20 dBm). Used for close-proximity device communication within same room.
PATABLE[2] 0x3E 0x1E PA Power Level 2: 0x1E = Medium-low output power (~-15 dBm). Used for moderate range indoor communication.
PATABLE[3] 0x3E 0x27 PA Power Level 3: 0x27 = Medium output power (~-10 dBm). Standard power level for normal indoor operation.
PATABLE[4] 0x3E 0x50 PA Power Level 4: 0x50 = Medium-high output power (~-6 dBm). Used for extended indoor range or light outdoor use.
PATABLE[5] 0x3E 0x81 PA Power Level 5: 0x81 = High output power (~0 dBm). Used for maximum indoor range or outdoor communication.
PATABLE[6] 0x3E 0xCB PA Power Level 6: 0xCB = Very high output power (~+5 dBm). Used for long-range outdoor communication.
PATABLE[7] 0x3E 0xC2 PA Power Level 7: 0xC2 = Maximum output power (~+10 dBm). Highest power setting for maximum range, used sparingly to preserve battery.
FREND0 0x22 0x17 Frontend TX Config: 0x17 = Bits[7:4]=0001 (LODIV_BUF_CURRENT_TX), Bits[2:0]=111 (PA_POWER=7).

Power Configuration

FREND0 selects PATABLE[7] for maximum transmit power during normal operation.

Wake-on-Radio (WOR)

The radio module uses Wake-on-Radio to minimize power consumption. The system alternates between active periods (EVENT0) and sleep periods, with automatic calibration during startup.

Analysis Scope

The parameters below are derived from the initial burst write configuration only. WOR functionality and operational behavior have not been extensively investigated since they are not utilized by the Genius Gateway implementation, which operates in continuous receive mode for real-time monitoring.

Parameter Value Behavior/Function
Sleep Period (EVENT0) 103.376 seconds Device enters low-power sleep mode for ~1 minute 43 seconds between communication windows. Reduces average current consumption significantly.
Wake Duration ~5-10 ms Active listening window where device monitors for incoming transmissions. Short duration minimizes power usage while maintaining responsiveness.
Duty Cycle ~0.01% Extremely low duty cycle (active <0.01% of time) enables months of battery operation while maintaining network connectivity.
Calibration Mode Automatic RC oscillator automatically calibrates during startup and periodically during operation to maintain accurate timing despite temperature variations.
Backup Timeout (EVENT1) 1654 seconds Secondary timeout (16× EVENT0) provides backup wake-up mechanism if primary timer fails. Ensures device doesn't sleep indefinitely.
RSSI Timeout 0.1803 ms Carrier sense timeout during wake periods. If signal detected, device stays active longer to receive complete packet transmission.
RC Oscillator Mode Always Active RC oscillator remains powered during sleep (RC_PD=0) to maintain accurate WOR timing. Trades slight power increase for timing reliability.
WOR Signal Output GDO0 Pin GDO0 configured as WOR_EVNT0 output (0x24) - pulses high when EVENT0 timeout occurs, can be used by microcontroller for wake-up coordination.
Timing Resolution 32 Periods WOR_RES=001 sets 2⁵ = 32 period resolution for wake-up timing, balancing power consumption with timing accuracy.
